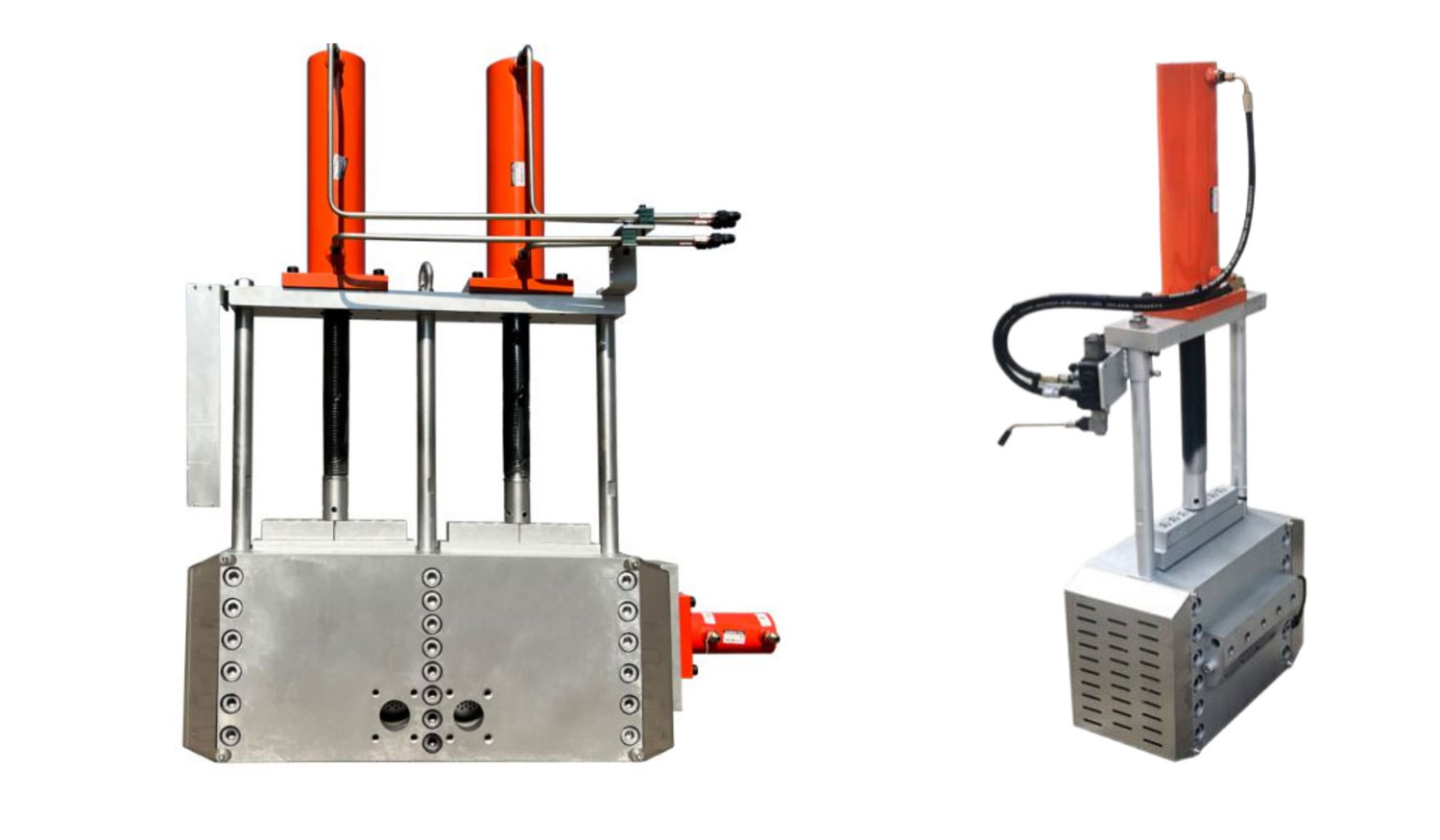

Screen Changer
Screen Changer
Used with plastic granulator.
The steel plate is made of 45# steel processing,and the back of the mesh board has a support vertex.
Its surface hardness can reach 50-55 degrees,number of filter hole quantity, larg filter area.
Long service life of die head. Increase network change cycle and reduce cost.
| Model | Transmission | Hydraulic Station Motor | Type of Screen changer | Filter Screen | Form Dimensions (mm) |
| 200 | Hydraulic Transmission | 2.2KW | Single | 200*200*1 | 310*205*270 |
| 2.2KW | Double | 200*200*2 | 580*205*270 | ||
| 250 | 2.2KW | Single | 250*250*1 | 370*235*340 | |
| 2.2KW | Double | 250*250*2 | 700*235*270 | ||
| 300 | 2.2KW | Single | 300*300*1 | 440*275*390 | |
| 2.2KW | Double | 300*300*2 | 830*275*390 | ||
| 350 | 4KW | Single | 350*350*1 | 520*330*440 | |
| 4KW | Double | 350*350*2 | 980*330*440 |
